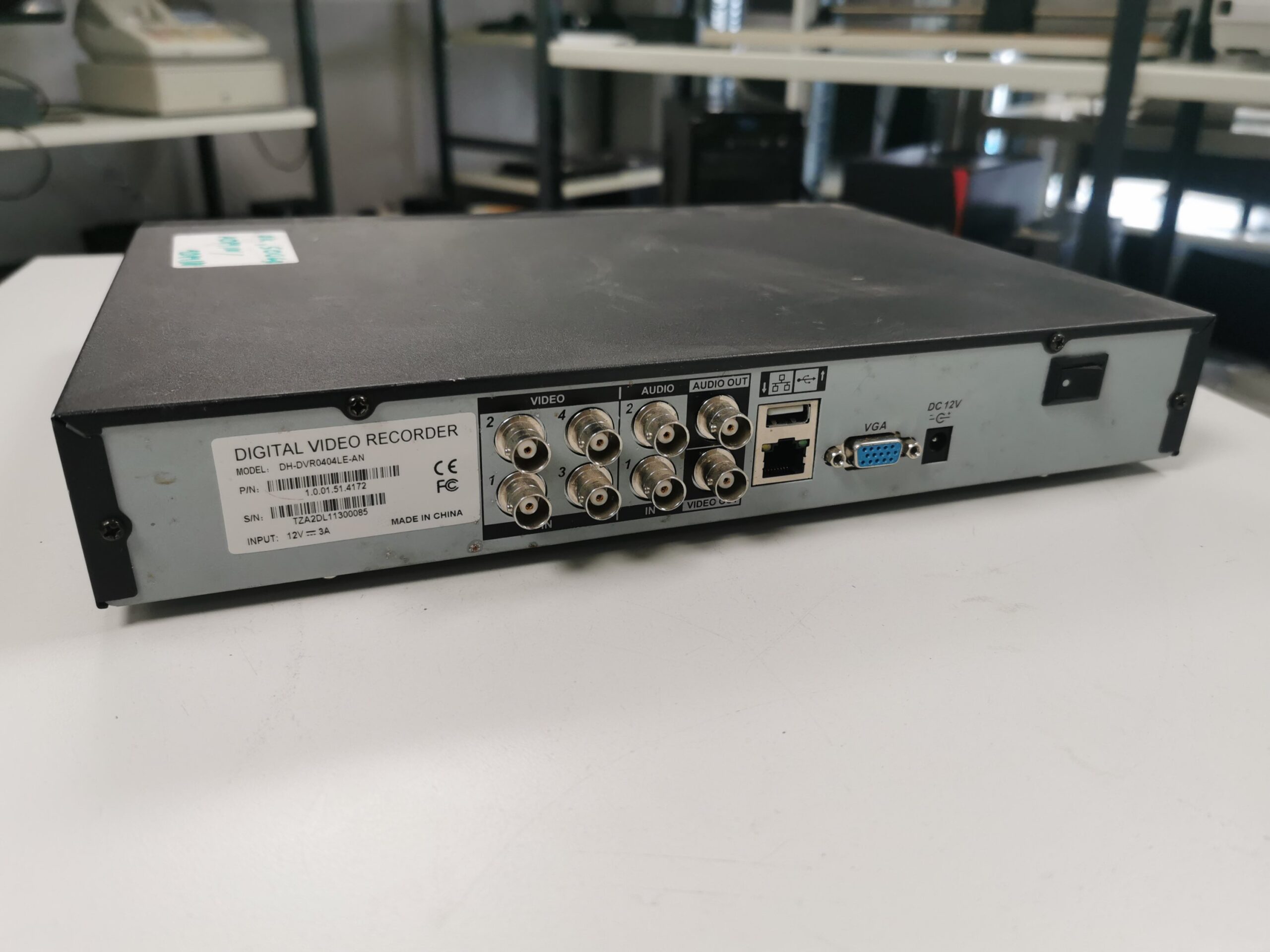

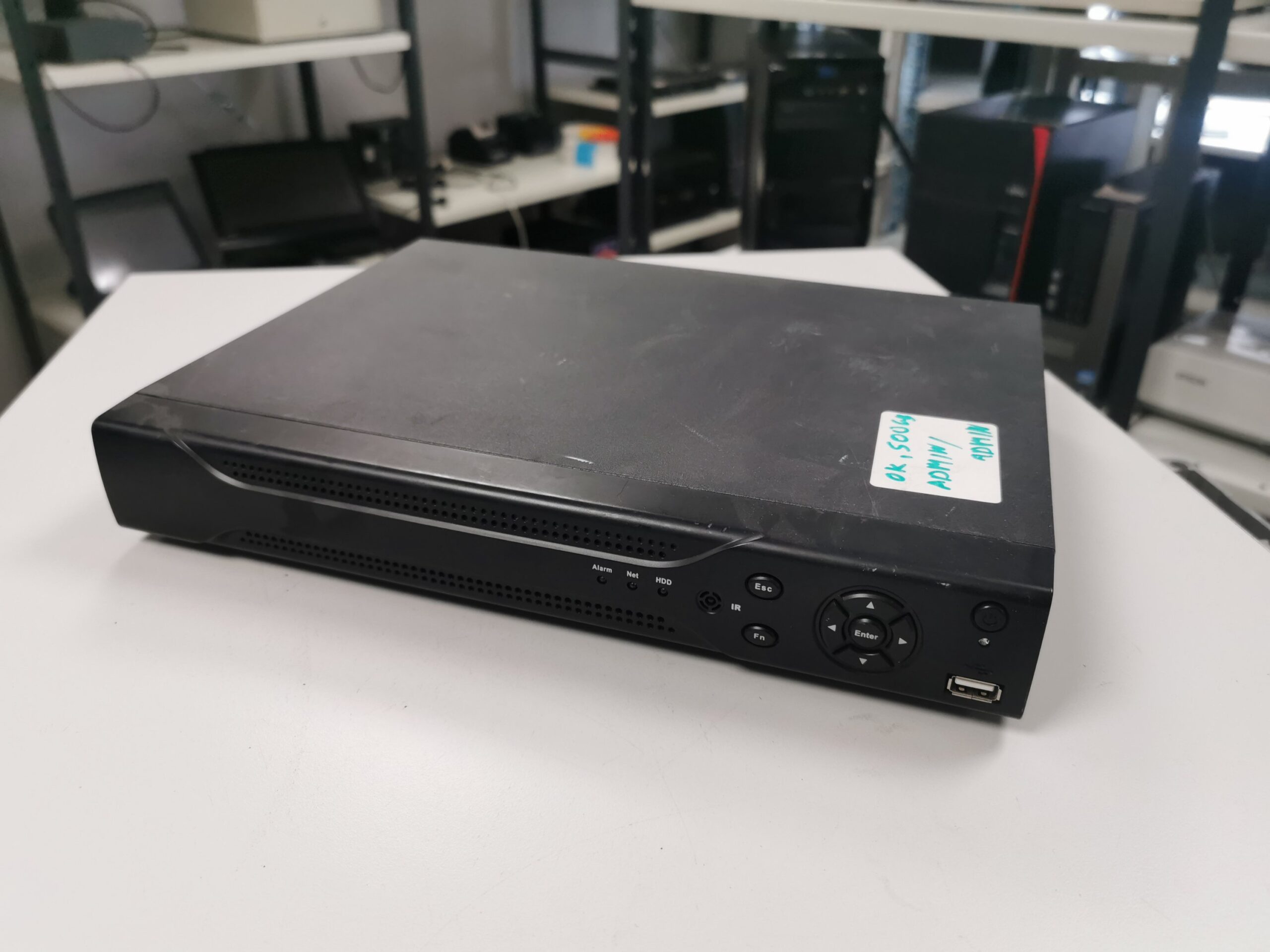

Dahun DH-DVR0404LE-AN 500GB HDD


1 laos



Tootja: Dahun

Mudel: DH-DVR0404LE-AN

Salvestusruum: 500GB

Info :

Video System-NTSC/PAL
Video/Audio Compression Format-H.264/G.711
Video Input-4 channel, BNC(1.0Vp-p, 75O)
Video Output (BNC)-1 TV, BNC(1.0Vp-p, 75O), 1 VGA, 1 HDMI
Display Split-1/4
Resolution-1280×1024, 1280×720, 1024×768, 800×600
Tour Display-Supported
Recording Mode-Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
Recording Resolution-1st Camera in D1 and 2,3&4 in CIF
Recording Interval-1~120 min. (default: 60 min.), Pre-record: 1~30 sec., Post-record: 10~300 sec.
Trigger Events-Recording, PTZ movement, Tour, Alarm, Email, Spot output
Motion Detection-Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Audio Input-4 channel, BNC(200-2800mV, 30KO)
Audio Output-1 channel, BNC(200-3000mV, 5KO)
Alarm Input-4 channel
Relay Output-3 channel
Backup Mode-Flash drive / USB HDD / USB CD/DVD-RW / Network download
Network Interface-RJ-45 port (10/100M)
Network Functions-TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server
Hard Disk-1 SATA port, Max 2TB HDD supported
Network Protocol-TCP/IP / PPPOE / DHCP / DDNS
USB Interface-2 ports, 1 for mouse control, 1 for backup
Power Supply-AC 100~240 V, 50/60 Hz

Garantii 6 kuud

Dahun DH-DVR0404LE-AN 500GB HDD
